Oxygen Probe
Oxygen Probe

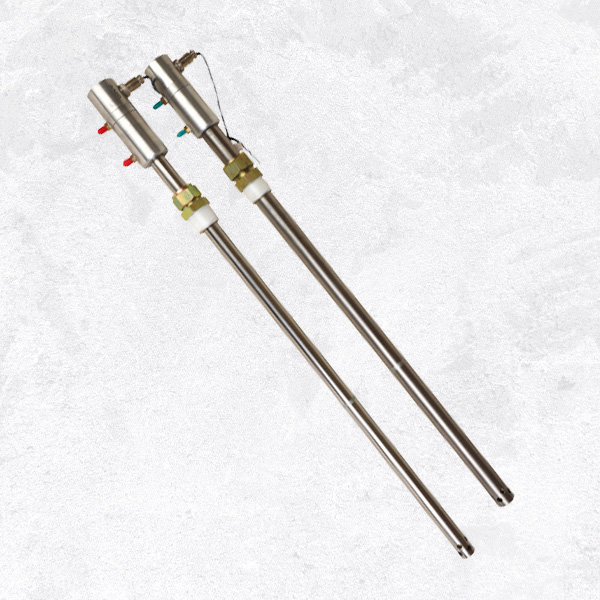

AMB ELECTRONIC SYSTEM TECH PVT. LTD. is known for quality production of Oxygen Probe to measure the carbon potential infused in the components. Oxygen probe are widely acknowledged for accurate and reliable monitoring under severe conditions of carburized atmosphere and thermal cycling. Probes are made from special alloy sheath for long life. The zirconia sensor is located at the tip of the probe, so that probe is in contact of the furnace atmosphere and gives precise results. Probes are normally available in lengths up to 1000 mm or more on special order. These are developed in different form for quick response time and logarithmic Value. Different available length of Oxygen Probe:
INDO-AMERICAN OXYGEN PROBE / CARBON PROBE
Length of Oxygen Probe
INDO-AMERICAN OXYGEN PROBE / CARBON PROBE
| Reliable oxygen probe for | Carburizing, Carbonitriding, Neutral hardening |
| Suitable heat treatment gases | (Endo, LPG, Methanol, CO2, Isopropyl, Acetone, etc) |
| Interchangeability | With any make carbon probes/oxygen probes |
| Probe electrical | Easy disconnect allows for simple replacement |
| Application | % Carbon measurement 0.01 to 1.5% |
| Multiple Insertion Length | 300-1800 mm with adjustable compression fitting |
| Dia of sensor | 1.05″ and 0.84″, Selectable |
| Insertion Type | Horizontal/Vertical |
| Type of Furnace | SQF, PIT, Continuous, Pusher |
| Working Temperature | 750-980 Deg C |
| Thermocouple Type | No, K-type, R-type, S-type |
| Reference air Module | Specially Designed With out any internal rubber/metal tubing |
| Reference air inlet fitting | Barb type or ” ferrule type Selectable |
| Burn off reference air inlet fitting | Barb type or ¼” ferrule type Selectable |
| Sheath | Special alloy material resistance to High Temp/C.P. atmospher |
| De soot system | Large dia sheath & Special TIP Design does not clog with soot |
| Lab verification | 100% furnace tested and Certified By online Gas |
| Response time | <1.0 sec |
| Service | Extremely strategically designed automatic controlled LAB in Delhi to detect fault, repair & re-calibrate any make and model Zirconium Oxygen probe available worldwide |
| Standard warranty | 12 months against manufacturing defect |
| Spares | Component wise readily available for any make probe |
| Replacement probe | Readily available for any make Model |
| Price | Local Price with International Quality |
| Replacement cost | Lowest rebuilt cost |
| Custom design | As per client’s request (Optional |
Length of Oxygen Probe
- 600mm
- 700mm
- 800mm
- 900mm
- OD 21.7mm and 27.3 mm
AMB ELECTRONIC SYSTEM TECH PVT. LTD., the Oxygen Probe manufacturer in India has produced completely new method of measuring oxygen gases. The probe is suitable for high temperature carburizing, heat treating, and endo-thermic gas generators as well as monitoring oxygen in combustion applications. Oxygen Probe is produced under the strict guidelines of experienced professionals with advance technology approach. The technique has given outstanding results in terms of dependability and long life of the sensor which allows the Oxygen Probe manufacturer in Delhi to offer one year warranty on different length oxygen probes.
The probe is fit for high temperature carburizing, heat Treating, carbo nitriding processes. The Company always focus on design and production of oxygen probe to get the best industrial results. Our probe allows measurements to be made in heat environment for making sampling system with great accuracy. Our range of probe is completely fit for industrial purposes. From us, you always get the best range with the best price as well. We are known for high accuracy and quality production on the specific needs of clients. Customize production services are also offered by experienced and skilled industrial professionals.
Want an affordable or the best quote for oxygen probe, then feel free to contact. We are here to assist you in better way.
